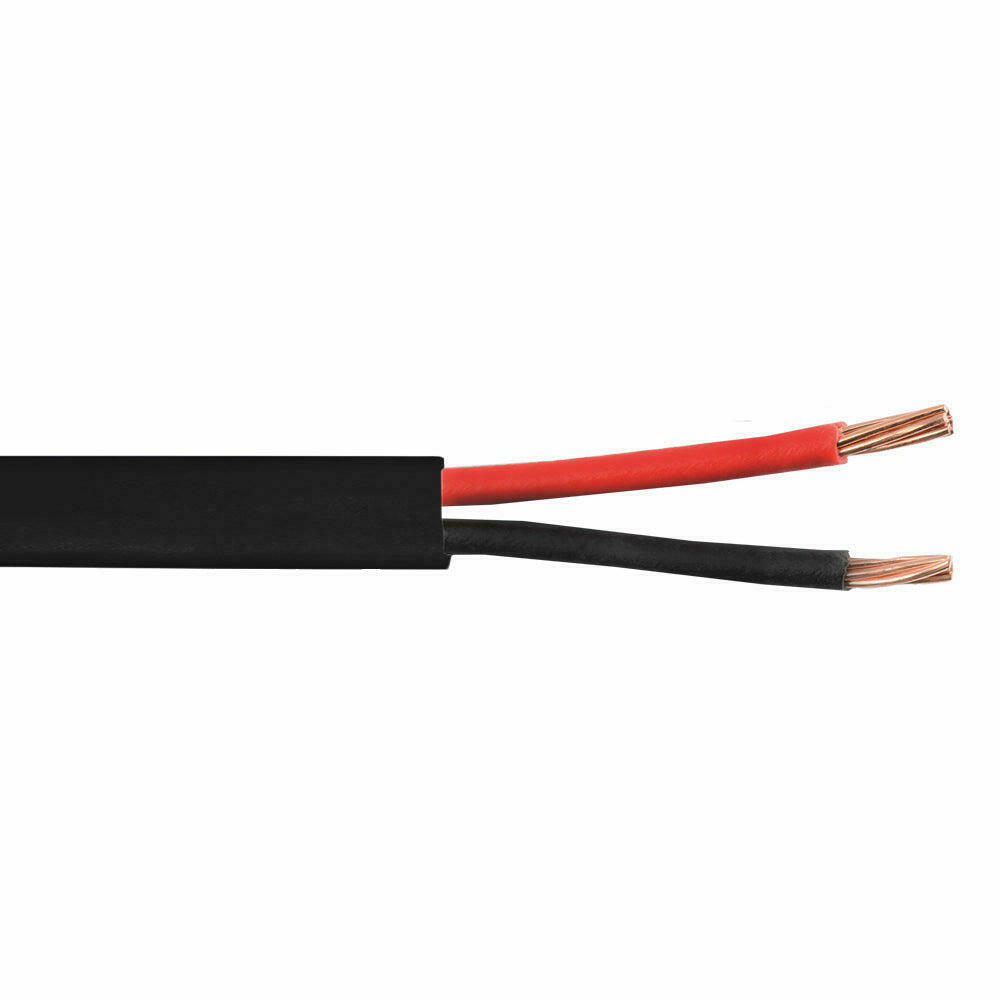

1000ft 2C 18AWG Stranded Control Cable - CMR - Black

( 0 Customer Reviews )

Model#: CAB-BK-CON421-BK

OEM Free shipping

$225.49

Color:

Quantity:

- +

Add To Wish List

In Stock: Order now to ship out in 1-2 business days

Earn 4510 S-Points Rewards

1-year warranty

Product Overview

Specifications

Customer Reviews

FAQ'S

Product Overview

This 2 conductor 18AWG stranded unshielded control cable is white in color and 1000 feet in length. It is typically used in control panel and automation control applications.

Physical Characteristics
Cable Lengths Available	1000 foot [305m] Pull Box
Color (jacket)	Black / White
Number of Conductors	2 Conductors (Red/Black)
Jacket Material	PVC - Polyvinyl Chloride
Nominal Jacket Thickness	0.45mm
Nominal Overall Diameter	5.1mm
Insulation Material	PVC - Polyvinyl Chloride
Nominal Insulation Thickness	0.38mm
Nominal Insulation Diameter	1.9mm
Min. Ave. Jacket Thickness	0.36 mm
Wire Gauge	18 AWG
Maximum Voltage	300V
Material (conductors)	Bare Copper - Oxygen-Free
Stranding	16*30AWG
Temperature Rating	-20C ~ 75C
Before Tensile Strength (Mpa)	>=13.8
Aging Elongation (%)	>=100
Aging Condition (Cxhrs)	100x168
After Tensile Strength (Mpa)	>=85% of unaged
Aging Elongation (%)	>=50% of unaged
Cold Bend (-202o Cx4hrs)	No Crack
Approvals
c(ETL)us	Compliant
Packaging Information
Package Quantity	1 Pull Box
Product Weight	22.53 lbs

1000ft 2C 18AWG Stranded Control Cable - CMR
